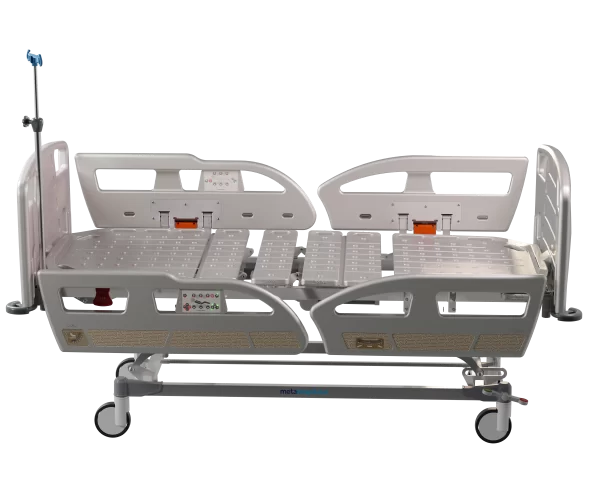

The bed is equipped with four siderails made of polyethylene, providing full enclosure for the patient to ensure enhanced safety. Digital controls located on the siderails, along with a digital supervisor at the footboard, enable smooth bed adjustments, including achieving multiple positions such as a chair position. The headboards, also made of polyethylene, are removable and feature an exclusive locking system for easy mobility and cleaning. The bed is supported by 6-inch casters with total and directional locking for secure movement. Its base is covered with high-impact thermoplastic cladding, ensuring durability.
Registered Product:
80581990009Consult Anvisa
The Evolution Care bed offers optional mattresses: The laminated mattress provides support, durability, and pressure relief with its layered structure. The honeycomb mattress evenly distributes weight, preventing pressure ulcers, making it ideal for patients who will remain in bed for extended periods. The viscoelastic mattress conforms to the body, relieving pressure points and improving circulation, perfect for patients with chronic pain or those requiring adaptive support. All options are certified products.
250 Kg Patient | 280 Kg Total
Made from removable thermoplastic polymers with easy fitting, it provides thermal insulation, impact resistance, lightweight handling, and ease of cleaning, enhancing patient safety and comfort during medical treatments and procedures.
The Evolution Care MT-165 features a pressure relief system that evenly distributes the patient’s weight, reducing the risk of pressure ulcers—an essential feature for patients who spend extended periods in bed.
Furthermore, the headboard and footboard are removable, providing easy access to the patient.
Easy-to-access and user-friendly lock
The Evolution MT 165 bed allows adjustments in various positions, such as backrest, leg rest, Fowler, height elevation, Trendelenburg, and reverse Trendelenburg. It also features special movements like chair position and CPR ONE Touch.
It comes equipped with a digital supervisor that provides control over the bed’s movements and other information such as the patient’s weight, date, and time. Additionally, the MT-165 features an internal digital control, enabling patients to make adjustments independently, enhancing their autonomy.
All bed functions can be locked to prevent accidents, ensuring safety for both patients and visitors. The lockout function helps maintain a controlled environment, preventing unexpected changes that could compromise patient comfort and safety, particularly in scenarios where the patient may have cognitive or motor limitations. It can also be equipped with an integrated scale or even with the Cyberbed and Bedmonitor monitoring systems for enhanced functionality.
Standard Lenght
Extended Lenth
Bed height Range: from 12 inches (300mm) to 33 inches (830mm)
Registration: 80581990009 Consult Anvisa
Structure:
Tubular structure with plates of different carbon steel thicknesses, designed to withstand the product’s load and nominal stress.
Chassis: 50 x 30 x 2.0 mm tubes with 1/4” thick plates.
Bed Frame Structure: 50 x 30 x 2.0 mm tubes with 3/8” thick plates.
Metal structure of the bed: Four articulated sections with a tube structure of 30 x 20 x 1.2 mm and 3/16” thick plates.
Operating Voltage: 100V to 240V Frequency: 50/60Hz Maximum Current: 3.15A
Bed:
Bed made of wood panels (MDP, MDF, or TS), with patient containment and mattress limiter. The bed platform is independently secured to the four articulated sections of the metal frame, ensuring durability and stability. Engineered with exceptional resistance to corrosion, making it ideal for demanding healthcare environments. Withstands over 1,320 hours in the salt spray corrosion test, ensuring exceptional durability and reliability.
Movement:
Movement is carried out through a mechanical system that drives the vertical linear motion of the motors responsible for raising the bed. Bed movements are performed using four motors and an adjustable system with six positions.
Movements:
0º - 77º
Elevation
0º - 23º
0º - -15º
0º - 15º
Project:
The project of the EVOLUTION CARE Motorized Bed was developed according to the standards of the following regulation:
Electronic Controls:
Vertical control on the side rail and supervisor with display on the footboard.
Castors and Brake System:
6” thermoplastic castors with floor protection, low noise during movement, and excellent load capacity.
Total and directional brake activated by a foot-operated lever system.
Siderails and Rail System:
Four siderails made of high-impact injected polyethylene, in the classic enclosed model. Retractable system with locking mechanism.
Headboard, Footboard, and Headboard Attachment:
Headboard and footboard made of high-impact injection-molded polyethylene, in the classic model. Attachment with lock and removable.
Surface Finish of the Metal Structure:
The entire carbon steel structure undergoes a chemical anti-rust treatment and is finished with electrostatic powder coating, which is then heated to a temperature of 220°C in an oven. This process enhances the chemical resistance of the structure.
Chassis Finish:
Full fairing for chassis in thermoplastic.
| Sistema Bluetooth | ACO 77 Sound in one Siderail |
|---|---|
| Sensores | ACO 80 Brake, ACO 81 Partial Exit, ACO 82 Height, ACO 83 Lowered Siderail, No sensor |
| Quinta Roda | ACO 33 |
| Protetor de Parede | ACO 30 |
| Movimento One Touch | ACO 85 One Touch Movement |
| Batería | ACO 79 |
| Colchão | Honeycomb hospital mattress MT-660, Laminated MT-672, Viscoelastic hospital mattress MT-666 |
| Digital Evo | ACO 68, ACO 69, ACO 70, Right Side |
| Controle remoto | ACO 60 |
| Personalização | ACO 42 – Evolution Siderails, ACO 43 – Evolution Footboard and Headboard |
| Suporte para Oxigênio EVO | ACO 23 |
| Balança | ACO 84 |
| Raio X evolution | ACO 95 |
| Suporte para soro | MT 935 |
| Roda | ACO 06 – 6" Caster ans Individual Brake, ACO 07 – 6" Caster and Directional and Total Brake |
