Description
Motorized Chair
Ideal Applications:
This model is ideal for environments specialized in renal therapy, such as hemodialysis units, nephrology outpatient clinics, and long-term treatment facilities. It is also well suited for hospitals offering intensive monitoring services, ensuring practicality and efficiency in space organization.
Hemopremium Motorized Chair: Ergonomics, Technology, and Safety in Hemodialysis Treatments

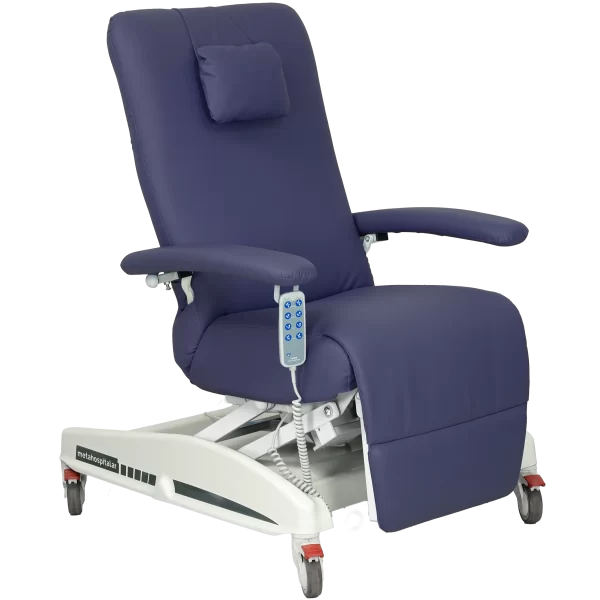

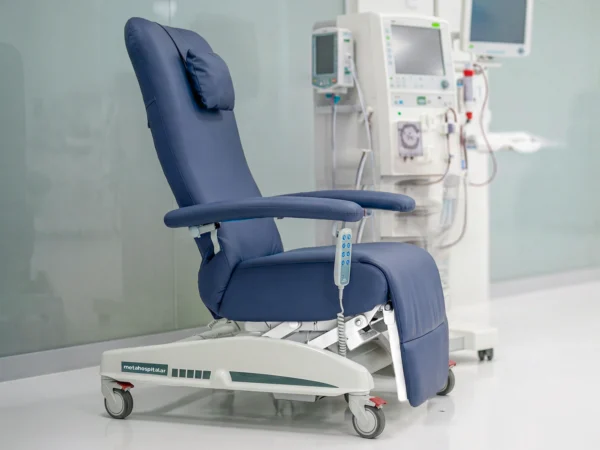

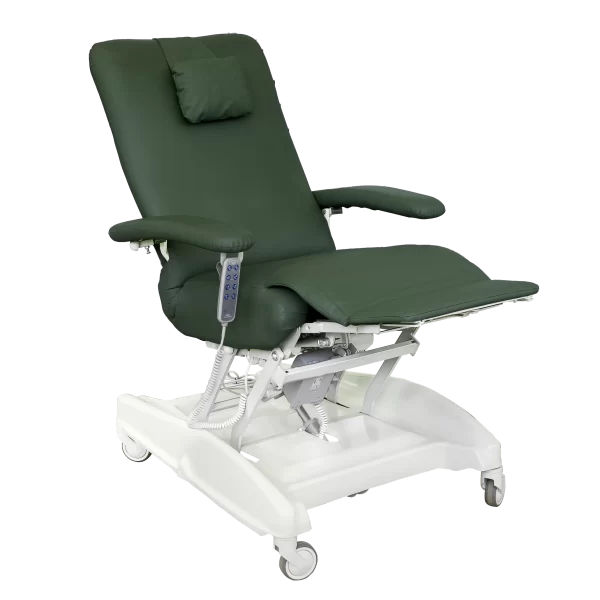

MT 639 – Hemopremium Motorized Chair
The Metahospitalar Hemopremium Armchair represents a significant advancement in comfort and safety for patients undergoing hemodialysis, raising the traditional standards of hospital environments and renal therapy settings.
Maximum Working Load
230 Kg (507 lbs)
Designed with a focus on ergonomics and functionality, this armchair incorporates advanced technology that, through an intuitive remote control, allows precise and smooth adjustments across multiple positions. Among its key features are the reclining capability, providing moments of rest and relaxation, as well as the 12° Trendelenburg positioning, which can be essential for optimizing care in specific clinical situations.
In addition to enhancing comfort during long treatment sessions, the Hemopremium Armchair was designed to integrate seamlessly with hospital safety and efficiency protocols. Its robust structure and the use of high-quality materials ensure not only the durability of the equipment but also facilitate cleaning and maintenance processes, which are essential in dialysis therapy units. As a result, the armchair not only minimizes the discomfort associated with prolonged treatments but also contributes to a more humanized and effective level of care for both patients and healthcare professionals.
Steel structure with anti-corrosion protection
Carbon Steel Structure: The base, articulation system, backrest, and armrests are constructed from carbon steel profiles measuring 40 × 20 × 2.0 mm, combined with steel plates of 3/16″ and 5/16″ thickness, as well as Ø1″ × 2.0 mm tubing and 3/8″ thick plates.
Construction Quality: Ensures long service life and high resistance, guaranteeing that the armchair maintains its structural integrity and comfort even after years of use, as it has undergone a 1,500-hour SALT SPRAY test.
Equipment Weight: 70Kg (155 lbs)
From the casters to the upholstery
Standard 4″ caster configuration: In addition to this size, it allows for other wheel and brake options—please refer to the end of this catalog. All models feature floor-friendly casters with low rolling noise and an excellent load capacity of 100 kg (221 lbs) per caster.
Upholstery: Waterproof, does not retain dust, and facilitates cleaning and asepsis, ensuring a safe and hygienic environment.
Motorized Movement
TECHNICAL SPECIFICATIONS MOTORIZED CHAIR HEMOPREMIUM - MT 639
MOTORIZED RECLINER CHAIR
Structure: Base constructed from rectangular carbon steel tubing (SAE 1005 to SAE 1030) measuring 50 × 30 × 2.0 mm, combined with 3/16″ thick steel plates.
Elevation articulations constructed from round carbon steel tubing measuring 40 × 20 × 2.0 mm, combined with 5/16″ thick steel plates.
Backrest and seat constructed from round carbon steel tubing (SAE 1005 to SAE 1030), Ø1″ × 2.0 mm.
Armrest constructed from rectangular carbon steel tubing (SAE 1005 to SAE 1030) measuring 40 × 20 × 2.0 mm, combined with 3/8″ thick steel plates.

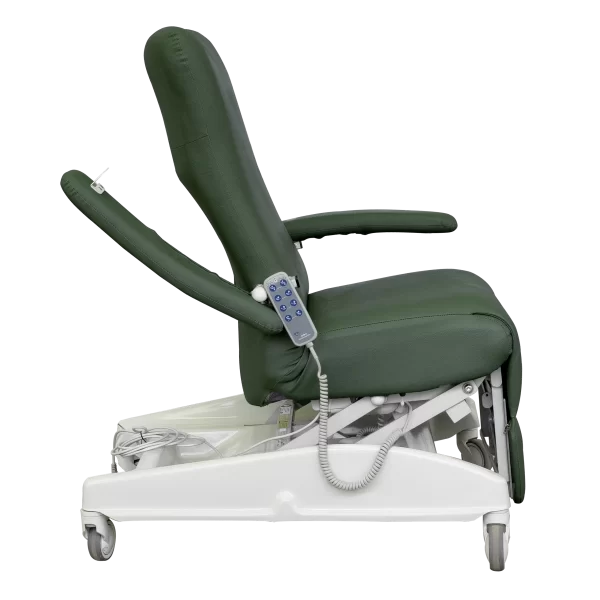

Features retractable armrests for lateral access.
Adjustable and articulated for enhanced comfort
MIG and laser welding ensure durability and strength.
Movement System
Movement is performed through an electric system using three motors, characterized by oil-free operation, low noise, low energy consumption, and low maintenance cost.
The electrical system includes protective fuses and an emergency stop button, which activates or deactivates all bed movements.
Control is operated via a wired remote control with eight buttons.
The movements available through the control are: Backrest, Footrest, Bed, Chair, Height Adjustment, and Trendelenburg.
Battery
Type: Gel lead-acid
Voltage: 24 V
Capacity: 1.2 Ah;
Casters: Equipped with 4″ (100 mm) diameter thermoplastic casters, providing floor protection, low rolling noise, and an excellent load capacity of 100 kg per caster.
Configuration: Four swivel casters.
Brakes: The product is equipped with a simple rolling system featuring individual braking for both translation and rotation, activated by pedals on all four casters.
Finish:
The base features a full plastic finish (ABS/PSAI), ensuring high resistance to impacts and breakage, as well as easy cleaning and asepsis.
The articulation components are supplied without surface finish.
Upholstery:
Mounted on a reinforced structure, featuring high-durability elastic webbing and laminated polyurethane foam with densities D-28 and D-28 Soft (extra soft). This configuration provides enhanced comfort, excellent shape recovery, and long-term durability.
Upholstery Covering: Exclusive hospital-grade vinyl (courvin), with high resistance to fungi and bacteria. Manufactured with a synthetic polyvinyl chloride (PVC) laminate, reinforced with 100% polyester, 0.8 mm thick, and finished with polyurethane. It is waterproof, dust-resistant, and easy to clean and sanitize. Features internal overlapping stitching for a refined finish.
Painting:
All carbon steel components undergo an anti-corrosion chemical treatment followed by a powder-coated electrostatic paint finish, cured in an oven at 220 °C, increasing chemical resistance.
Internal overlapping stitching for improved finishing. Features internal overlapping stitching for a refined finish.
Product Technical Data
Dimensions: L = 105 mm × W = 720 mm
Maximum Working Load: 230 kg
Recommended for: Dialysis Centers, Nephrology Outpatient Clinics, Clinics, and Hospitals.
Movement
backrest
Movement
Elevation
Movement
leg rest
Movement
Simultaneous Recline
Movement
bed position
Movement

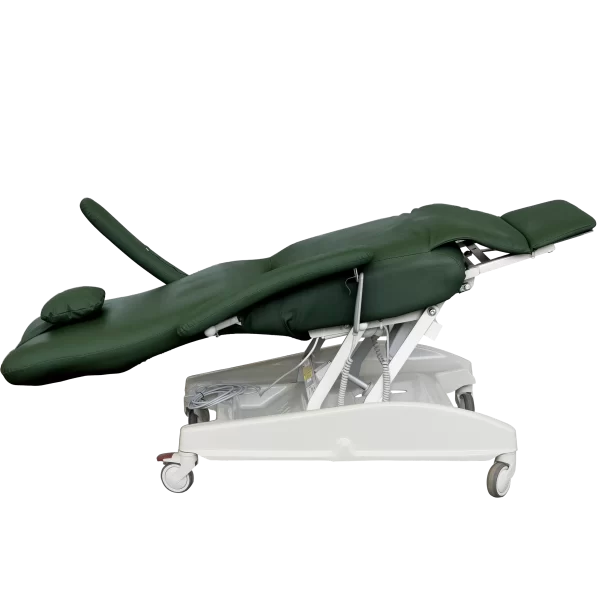

Trendelenburg 12º
- Wired remote control.
- Movements independents.
- Carbon Steel Structure.
- Thermoplastic base.
- Bag holder
- Remote control holder
- Independent arm movements.
- Lumbar movement.
- 4″ caster.
- D-28 and D-28 Soft upholstery.
- Removable cushion.
- Articulated backrest.
- Retractable armrest.
- Eco-leather.
- Robust structure
- High-density foam.
- Multiple color options
Articulated armrests that follow the movement of the armchair.
- Structure
Structure constructed in stainless steel.
Structure constructed in aluminum.Casters
• 3″ diameter casters in thermoplastic or zinc-plated finish.
• 4″ diameter zinc-plated casters.
• 5″ diameter casters in thermoplastic or zinc-plated finish.
• 6″ diameter casters in thermoplastic or zinc-plated finish.
• 8″ diameter casters in thermoplastic or zinc-plated finish.
• 10″ diameter casters in thermoplastic or zinc-plated finish.
• Feet with plastic tips.
• Two fixed casters and two swivel casters.Brake:
• Rolling system with dual-band casters.
• Brake on the two front wheels.
• Brake on the two rear wheels.
• Diagonal braking on two wheels.
• Total and directional braking system, operated by a single pedal.Base:
• Base without surface finish.
• Base with partial finish.
• Articulation with stainless steel finish, ensuring easy cleaning and asepsis.
Finish materials: plastics (ABS / PSAI / PP / PE / others), carbon steel, stainless steel, aluminum, TS, MDF.Movement:
• Motors: 1, 2, 4, or 5 motors.
• Controls: Wired remote control with 2, 4, 6, or 10 buttons; control integrated into the upholstery; satellite supervisor control; pedal control integrated into the base.
• Movements: Reverse Trendelenburg, Fowler, CPR, Chair, Stretcher, and Chair position for assisted egress.Upholstery:
• Foam densities: D-20, D-23, D-26, D-33, D-40.
• Foam types: laminated, sectioned, soft, pyramidal, extra-soft, hard, and viscoelastic.Upholstery Covering:
• Covering materials: vinyl (courino), leather.
• Stitching: topstitched, single, double, overlock, and various decorative patterns.Painting:
The stainless steel structure receives a high-gloss polished finish, ensuring excellent asepsis.
The paint features antimicrobial properties, with performance compliant with JIS Z 2801:2000, achieving a bacterial reduction greater than 99.9% within 24 hours.
Watch the Hemopremium Armchair demonstration video to learn about its features in detail and see how the product adapts to hospital routines.
