MT 212 - Diamond Intensive Care - Image 3

MT 212 – Diamond Intensive Care

MT 212 – Diamond Intensive Care ICU

ANVISA Registration: 80581990009
Certified Product:

Image for illustrative purposes only. Features may vary. Optional accessories available.

Adicionar às cotações

Structure

Structure: Tubular frame with carbon steel plates.
Chassis: 50 x 30 x 2.0 mm tubular structure (≈2″ x 1″ x 0.08″) with 6.35 mm thick plates (1/4″).
Metal Structure Surface Finish: anti-rust chemical treatment and electrostatic powder coating finish. 1,500-hour salt spray test performed by an INMETRO-accredited laboratory.

Bed

Bed Platform: composed of a 50 x 30 x 2.0 mm tubular structure (≈2″ x 1″ x 0.08″) with 9.5 mm thick plates (3/8″). The metal structure of the bed platform consists of four articulated sections made with a 30 x 20 x 1.2 mm tubular structure (≈1″ x 1″ x 0.05″) with 4.8 mm thick plates (3/16″).
Bed Platform: articulated thermoplastic platform in 4 sections, with radiolucent backrest and X-ray cassette tray.

Siderails

Retractable siderails with escape route and safety lock. Backrest Angle Indicator and Trendelenburg Indicator

Movement and Elevation

Backrest Fowler: 77°
Leg Fowler: 23°
Trendelenburg: 15°
Reverse Trendelenburg: -15°

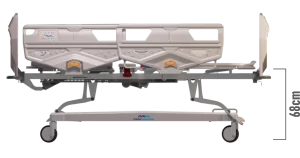

Maximum Height: 75 cm (≈30″)

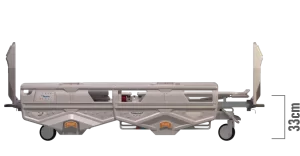

Minimum Height: 40 cm (≈16″)

Lifting system with 4 motors, providing smooth, silent, and safe movement.
Operation: through controls on the siderails, internal and external, and footboard display with function lockout.
Electric movements: Fowler, Semi-Fowler, Trendelenburg, Reverse Trendelenburg, Chair Position, Vascular Position, Cardiac Position, Abdominal Compensation System, Auto Contour, Electric CPR, and ONE TOUCH.
Bed exit alarm system.

Scale

DIGITAL SCALE: Integrated weighing system with accurate reading without the need to remove the patient.

Dimensions

Bed platform: 195 x 83 cm (77 x 33 in)

Standard Accessories
