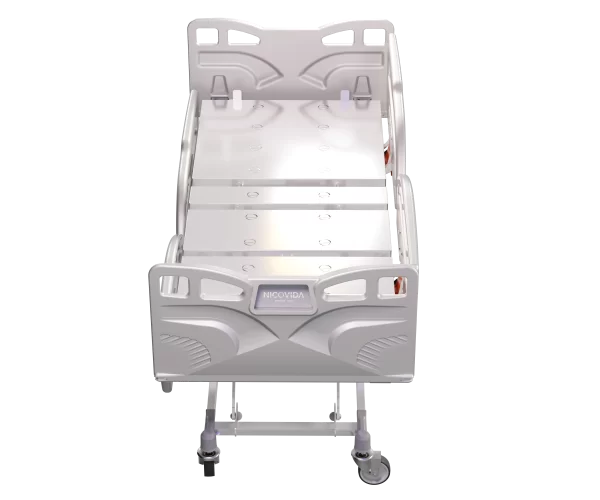

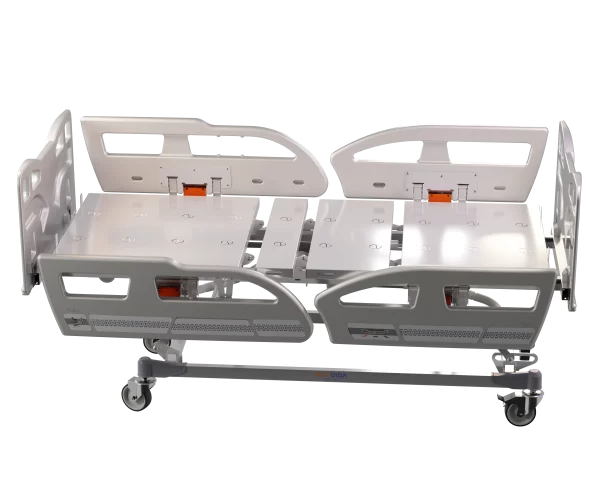

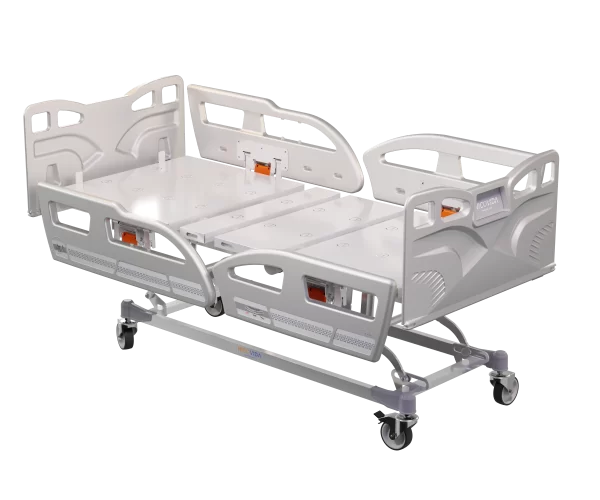

VIDA CARE ND-1150
ANVISA Registration.
Structure:
Tubular structure with sheets of varying thicknesses of carbon steel, designed to withstand the product’s nominal load and stress. The chassis is built from 50 x 30 x 2.0 mm rectangular tubes with 1/4″ thick sheets. The platform consists of a 50 x 30 x 2.0 mm tube structure with 3/8″ thick sheets. The metal framework of the bed includes four articulated sections made of 30 x 20 x 1.2 mm rectangular tubes with 3/16″ thick sheets.
Optional:
Similar structure with the same characteristics in stainless steel
Similar structure with the same characteristics in aluminum
Platform constructed in “U” profile carbon steel with 3.2 mm thickness, available in carbon steel, stainless steel, or aluminum
Bed Platform:
Structured thermoplastic platform with patient containment and mattress limiters.
The bed platform is independently secured to the four articulated sections of the metal frame, ensuring durability and stability. Optional:
Removable structured thermoplastic platform
Removable platform in perforated or smooth stainless steel sheet
Removable platform in perforated or smooth carbon steel
Removable platform in perforated or smooth aluminum sheet
Removable platform in ABS
Platform in wooden sheet (MDP, MDF, or TS)
Movement:
Vertical movement is performed by a carbon steel mechanical system that converts the horizontal linear movement of the motors into the vertical movement of the bed, enabling height adjustment. Bed movements are performed using four motors and an adjustable system with six positions. The movements performed by the bed are: Fowler, Semi-Fowler, backrest elevation, leg elevation, bed elevation and lowering, Trendelenburg, Reverse Trendelenburg, recliner, vascular, cardiac, and auto-contour. Optional Movement System:
Mechanical system with the same characteristics in stainless steel
Mechanical system with the same characteristics in aluminum
Retractable crank
Optional Motorization:
Two motors
Three motors
Five motors
Optional Movements:
CPR (quick release)
CPR + bed lowering to minimum position ONE TOUCH
Cardiac Chair
ONE TOUCH Chair
Electronic Controls:
• Mobile hand control with lock Optional:
Handheld control without blocker
Horizontal command on the siderail
Vertical command on the siderail
Supervisor with display on the siderail
Supervisor without display on the siderail
Supervisor with display on the footboard
Supervisor without display on the footboard
Supervisor control on the bed platform structure
Mobile satellite supervisor with blocker
Mobile satellite supervisor with cable
Casters and Brake System:
3″ thermoplastic casters, offering floor protection, low noise during movement, and excellent load capacity.
Brake system: Individual braking on each of the four wheels, activated via a pedal with a locking function for both rotation and translation.
Optional Casters:
3″ diameter thermoplastic or zinc-plated casters, with or without brakes
4″ diameter zinc-plated casters, with or without brakes
5″ diameter thermoplastic or zinc-plated casters, with or without brakes
6″ diameter thermoplastic or zinc-plated casters, with or without brakes
8″ diameter thermoplastic or zinc-plated casters, with or without brakes
10″ diameter thermoplastic or zinc-plated casters, with or without brakes
4″ diameter thermoplastic casters with total and directional braking
5″ diameter thermoplastic casters with total and directional braking
6″ diameter thermoplastic casters with total and directional braking
8″ diameter thermoplastic casters with total and directional braking
Optional Brake Systems:
Individual braking system on two diagonal casters
Individual braking system on the two footboard casters
Individual braking system on the two headboard casters
Total and directional braking system
Siderails System:
Set of four high-impact injected polyethylene siderails, flexible model with an escape route.
Retractable system with locking mechanism. Optional Side Rails:
Six polyethylene rails, flexible model, enclosed
Four polyethylene rails, classic model, enclosed
Four polyethylene rails, new premium model, enclosed
Four polyethylene rails, new premium model with escape route
Two metal tube rails (carbon steel, stainless steel, or aluminum) 3/4″ x 1.2mm or wood (MDF, MDP, or TS) with escape route
Four metal tube rails (carbon steel, stainless steel, or aluminum) 3/4″ x 1.2mm or wood (MDF, MDP, or TS), enclosed
Two metal tube rails (carbon steel, stainless steel, or aluminum) 3/4″ x 1.2mm or wood (MDF, MDP, or TS), enclosed
Optional Rail Systems:
Compact system with lock
Universal up-and-down system with lock
Stacking system
Headboard, Footboard, and Headboard Bracket:
Headboard and footboard: High-impact injection-molded polyethylene, flexible model.
Bracket: Removable with lock.
Optional Headboard and Footboard:
High-impact injection-molded polyethylene, classic model
High-impact injection-molded polyethylene, new premium model
Metal tubing (carbon steel, stainless steel, or aluminum) 3/4″ x 1.2mm
Wood (MDF, MDP, or TS)
Optional Bracket:
Removable bracket without lock
Fixed bracket
Surface Finish of Metal Structure:
Standard: Carbon steel structure treated with anti-rust chemical and finished with powder coating, baked at 220 °C, enhancing chemical resistance.
Optional: High-gloss polish for stainless steel, ensuring excellent asepsis.
Chassis Finish:
Partial thermoplastic covering for chassis over the wheels.
Optional:
Without covering
Complete thermoplastic covering
Partial or complete aluminum covering
Partial or complete painted carbon steel covering
Partial or complete stainless steel covering
Technical Specifications:
Fowler Backrest: 75° ~ 77° inclination
Fowler Legs: 20° ~ 23° inclination
Trendelenburg: 0° ~ (-15°)
Proclive: 0° ~ 15°
Maximum Height: 0.68m (26.8″)
Minimum Height: 0.33m (13.0″)
Bed Platform Dimensions:Length: 1950mm (76.8″)
Width: 830mm (32.7″)
Height: 330 ~ 680mm (13.0″ ~ 26.8″)
Overall Dimensions:Length: 2280mm (89.8″)
Width: 1090mm (42.9″)
Height: 330 ~ 680mm (13.0″ ~ 26.8″)
Max Work Load: 280 kg (617 lbs)Max Patient Weight: 250 kg (551 lbs)
Optional Bed Platform Dimensions:
Length: 1700 ~ 2280mm (66.9″ ~ 89.8″)
Width: 700 ~ 1100mm (27.6″ ~ 43.3″)
Height: 300 ~ 830mm (11.8″ ~ 32.7″)
Optional Overall Dimensions:
Length: 2000 ~ 2400mm (78.7″ ~ 94.5″)
Width: 1000 ~ 1500mm (39.4″ ~ 59.1″)
Height: 300 ~ 830mm (11.8″ ~ 32.7″)
Optional Load Capacities:
Work Load: 180 kg (397 lbs)Patient Weight: 150 kg (331 lbs)
Work Load: 280 kg (617 lbs)Patient Weight: 250 kg (551 lbs)
Samples may be requested at the discretion of the hospital.
Dorso 0-77º
Pernas 0-23º
Elevação 330 mm - 680 mm
Trendelenburg -15º
Proclive 15º
Chair Position
